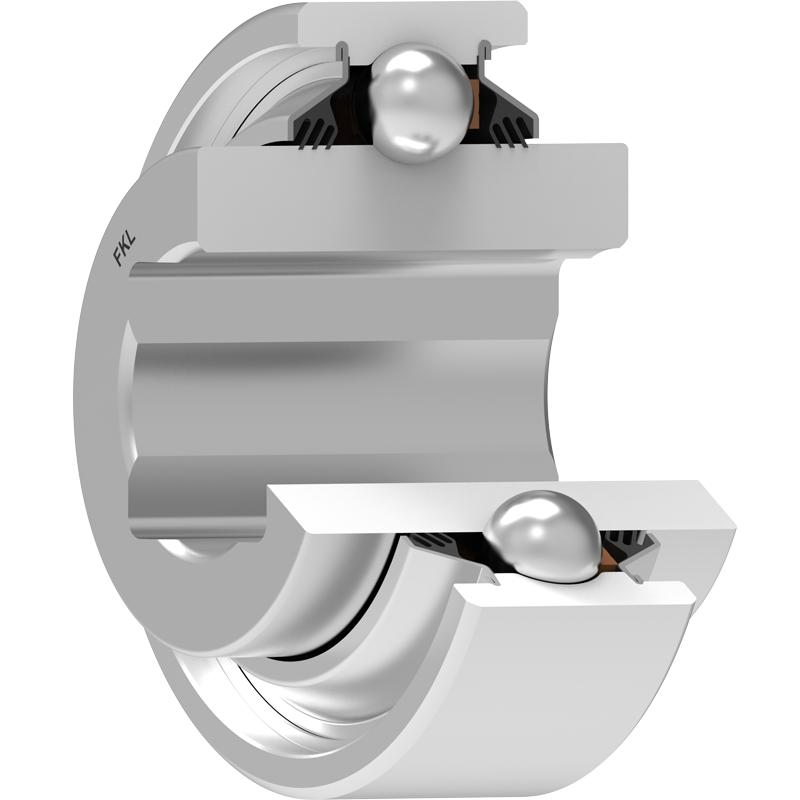

W 209PP3 FKL

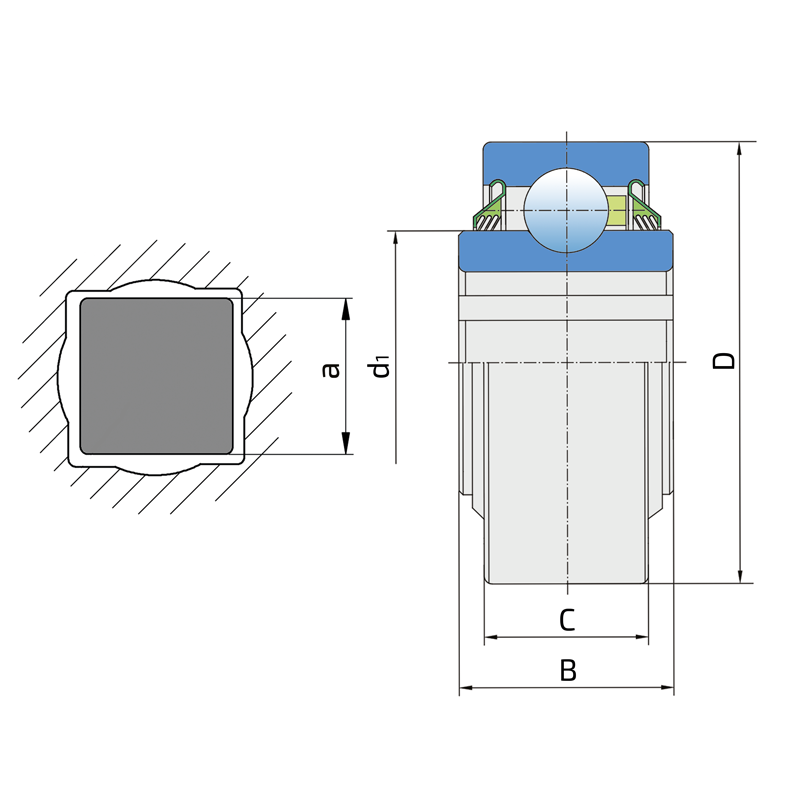

Technical datasheet:

D	Outside diameter	85
B	Width inner ring	45
C	Width outer ring	30.18
d1	Outer diameter inner ring	56.6
a	Shaft size	30
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
kg	Mass	0.98

Interchange:

OEM	Manufacturer	Comments
W209PP3	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
