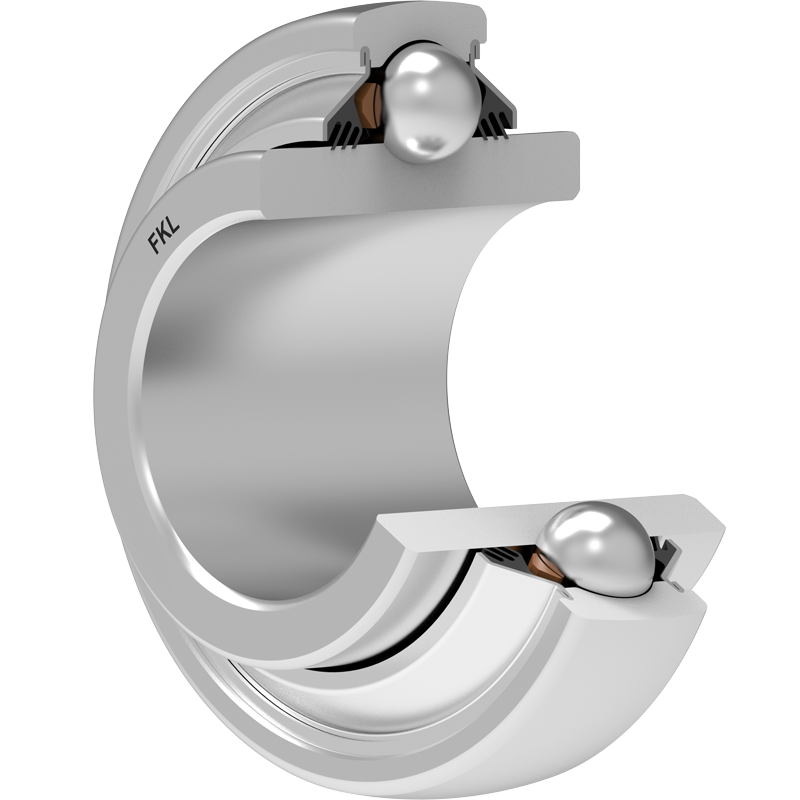

W 209PPB11 FKL

Technical datasheet:

d	Bore diameter	45.24
D	Outside diameter	85
B	Width inner ring	36.53
C	Width outer ring	22
d1	Outer diameter inner ring	56.6
kg	Mass	0.62
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
Pu	Fatigue load limit	0.857

Interchange:

OEM	Manufacturer	Comments
W209PPB11	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
