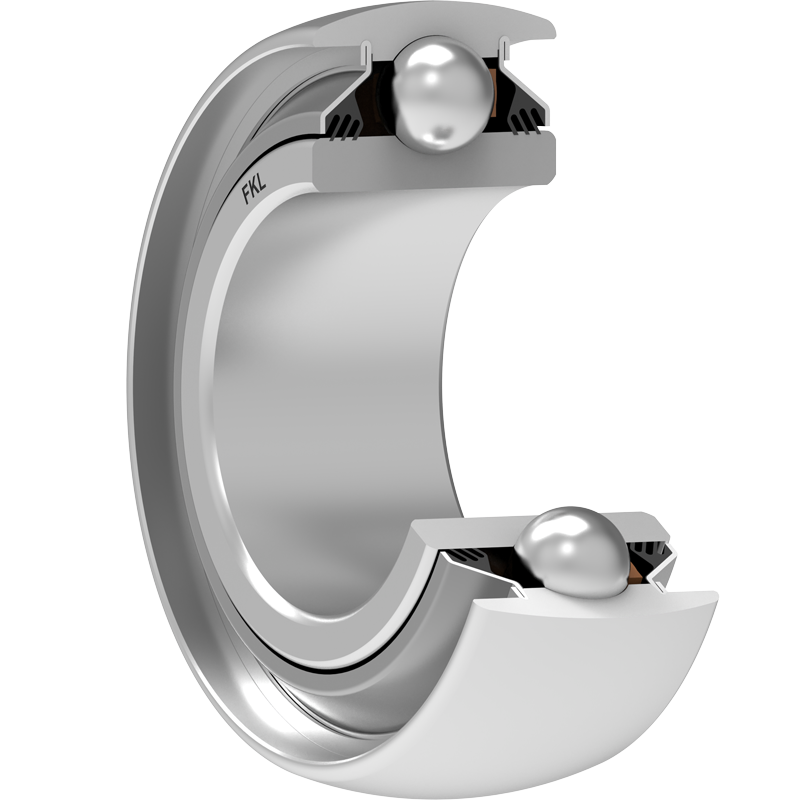

W 209PPB2 FKL

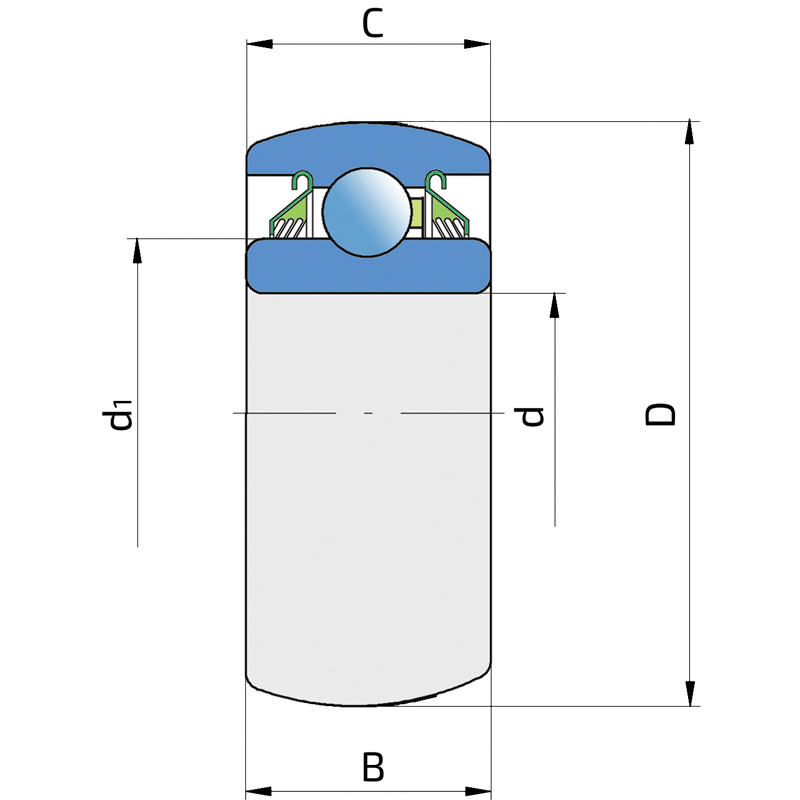

Technical datasheet:

d	Bore diameter	45
D	Outside diameter	85
B	Width inner ring	30.2
C	Width outer ring	30.18
d1	Outer diameter inner ring	56.6
kg	Mass	0.65
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
Pu	Fatigue load limit	0.857

Interchange:

OEM	Manufacturer	Comments
DS209TT2	BCA
R3-209E3	LINK BELT
W209PPB2	INA
W209PPB2	FAFNIR
W209PPB2	TORRINGTON

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
