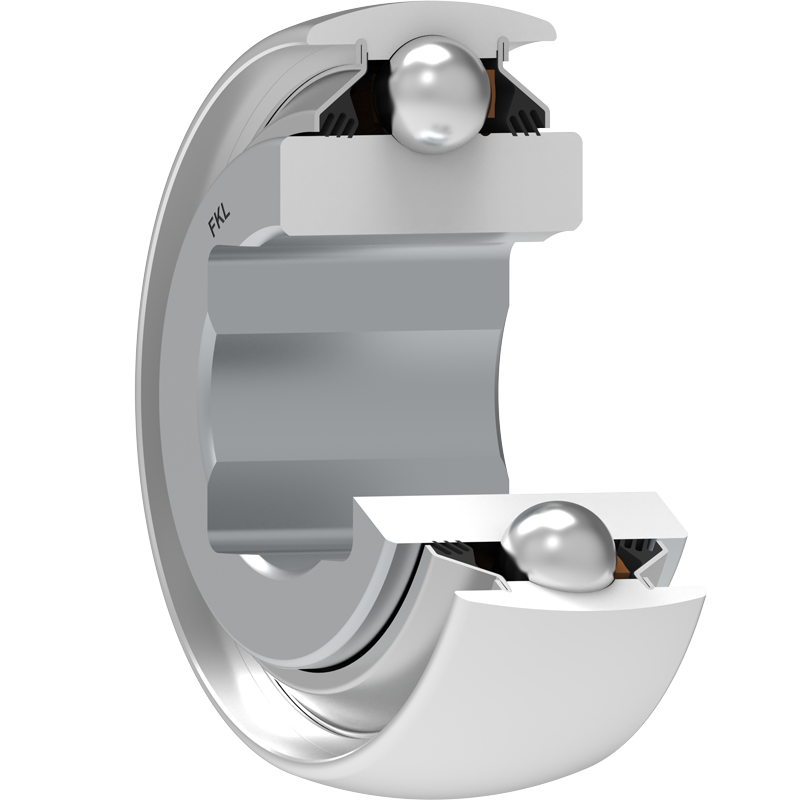

W 209PPB5 FKL

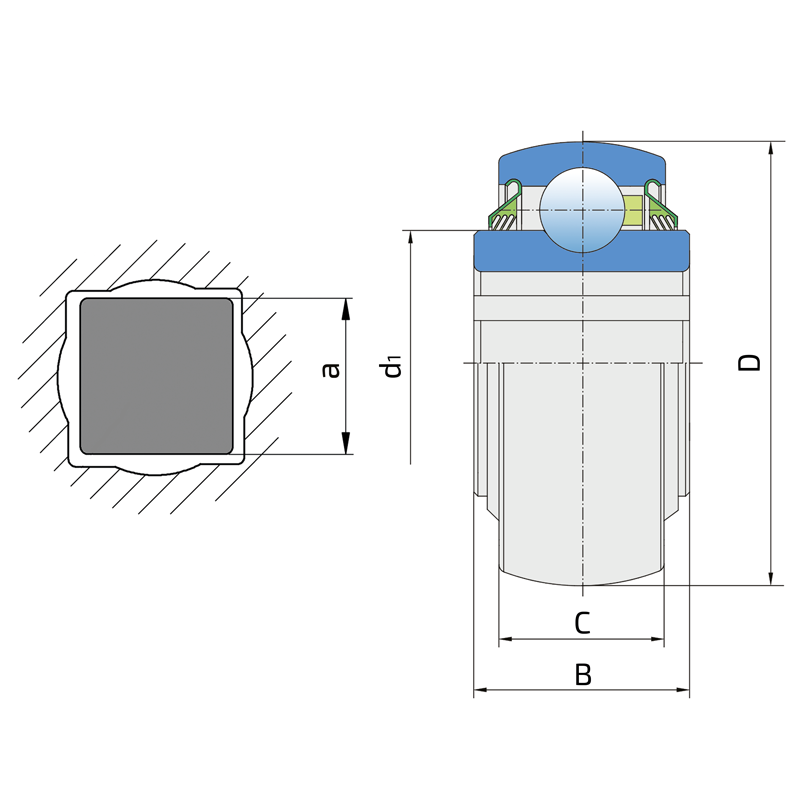

Technical datasheet:

D	Outside diameter	85
B	Width inner ring	36.5
C	Width outer ring	30.2
d1	Outer diameter inner ring	56.6
a	Shaft size	32.8
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
kg	Mass	0.79

Interchange:

OEM	Manufacturer	Comments
2AS09-1.1/4D1	NTN
2AS09-11/4	NTN
842303M1	MASSEY FERGUSON
W209PPB5	INA
W209PPB5	FAFNIR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
