W 210PP4 FKL

Technical datasheet:

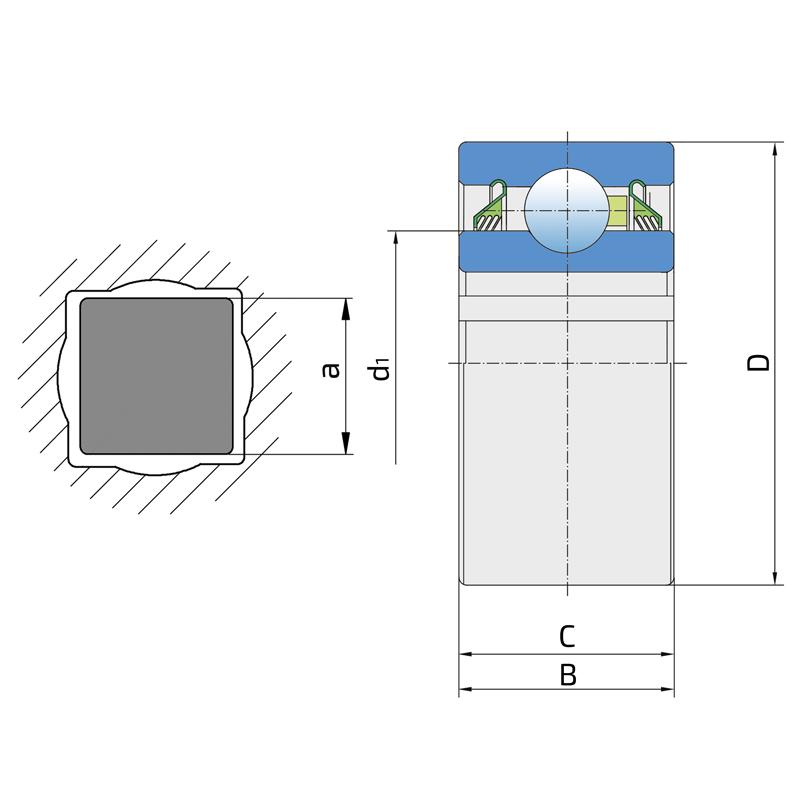

D	Outside diameter	90
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	62.5
a	Hexagonal bore	30
kg	Mass	1.21
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
Pu	Fatigue load limit	0.974

Interchange:

OEM	Manufacturer	Comments
W210PP4	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
