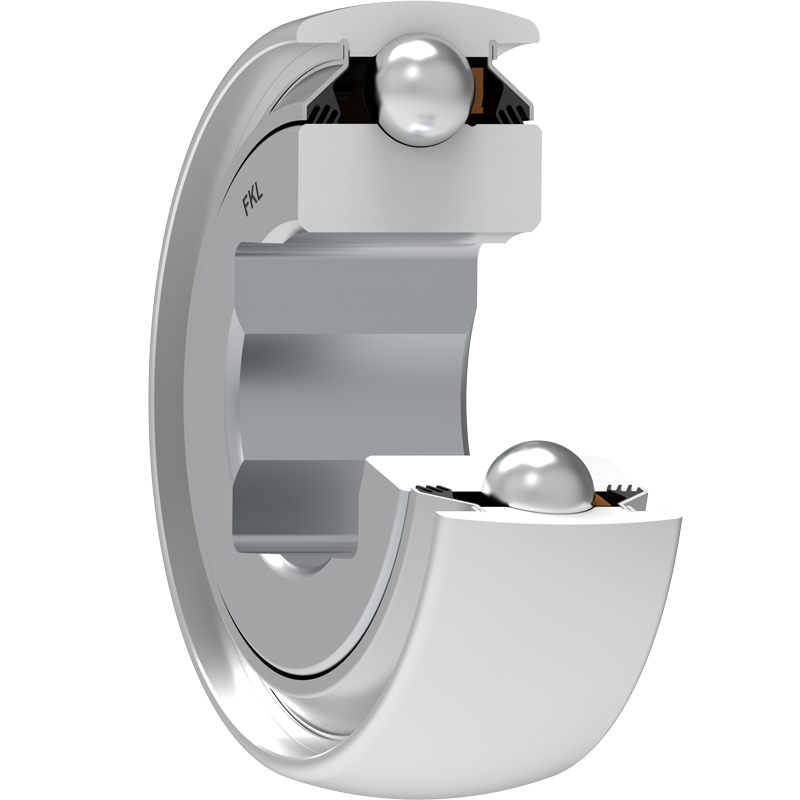

W 210PPB4 FKL

Technical datasheet:

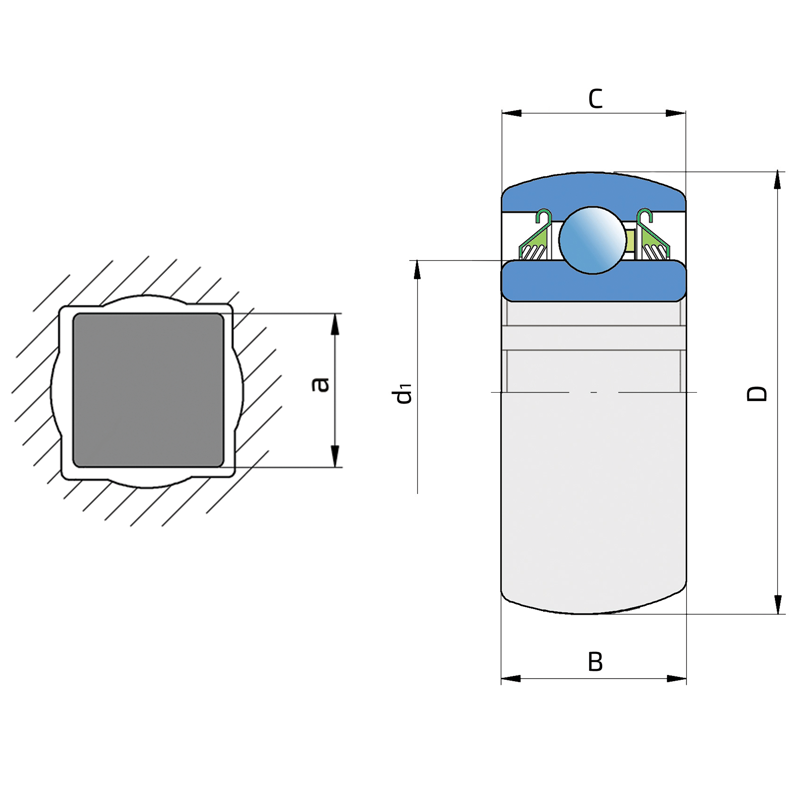

D	Outside diameter	90
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	62.5
a	Shaft size	28.6
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	0.96

Interchange:

OEM	Manufacturer	Comments
3AS10-13/4	NTN
W210PPB4	INA
W210PPB4	FAFNIR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
