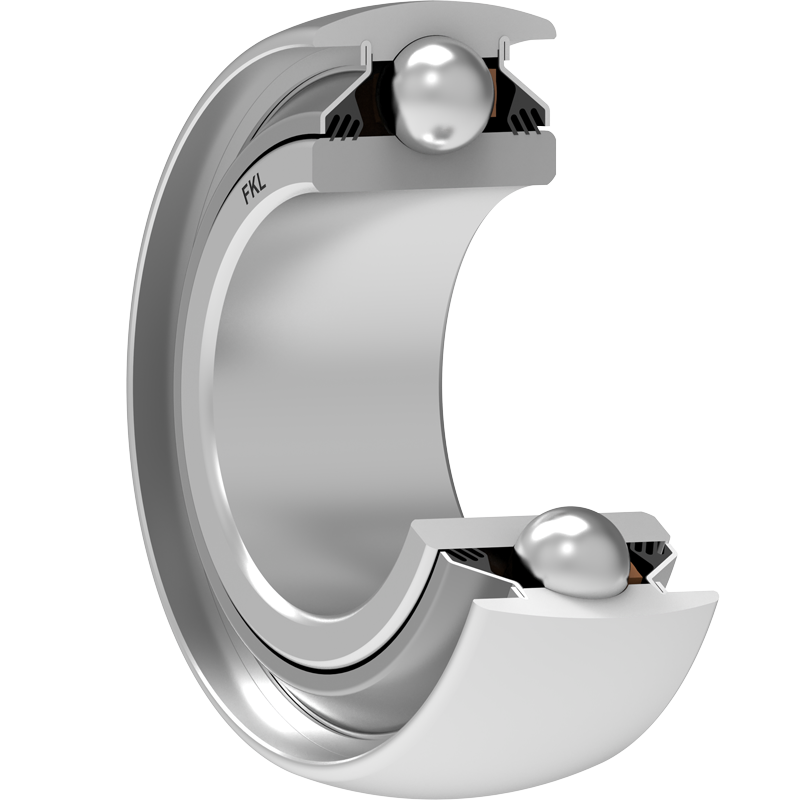

W 210PPB5 FKL

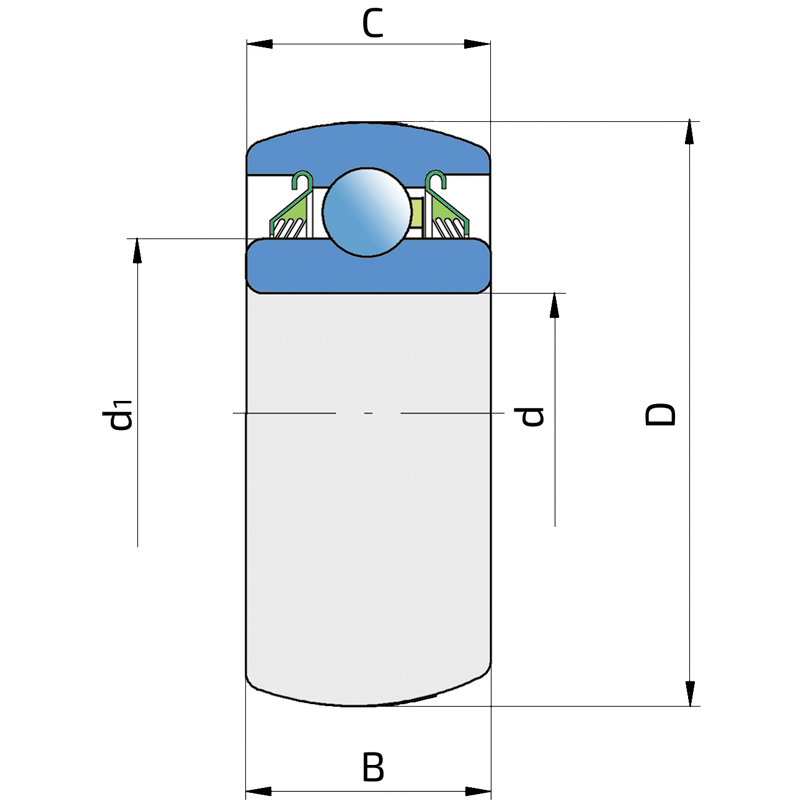

Technical datasheet:

d	Bore diameter	45.34
D	Outside diameter	90
B	Width inner ring	30.18
C	Width outer ring	30.18
d1	Outer diameter inner ring	62.5
kg	Mass	0.79
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
Pu	Fatigue load limit	0.974

Interchange:

OEM	Manufacturer	Comments
28R3-210E3	LINK BELT
3AC10-13/4	NTN
DS210TT5	BCA
W210PPB5	INA
W210PPB5	FAFNIR
W210PPB5	TORRINGTON

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
