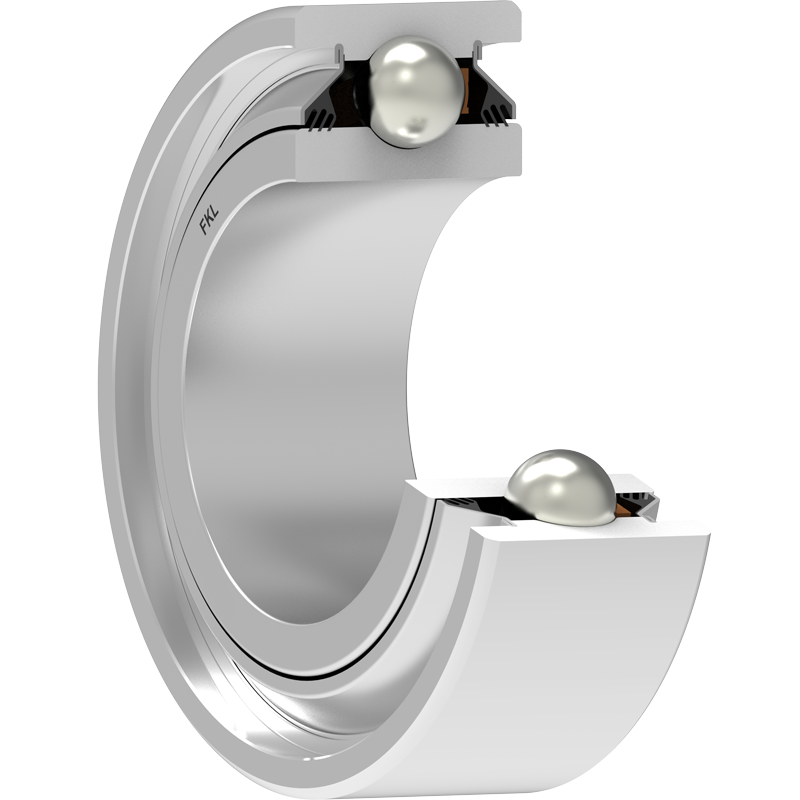

W 211PP2 FKL

Technical datasheet:

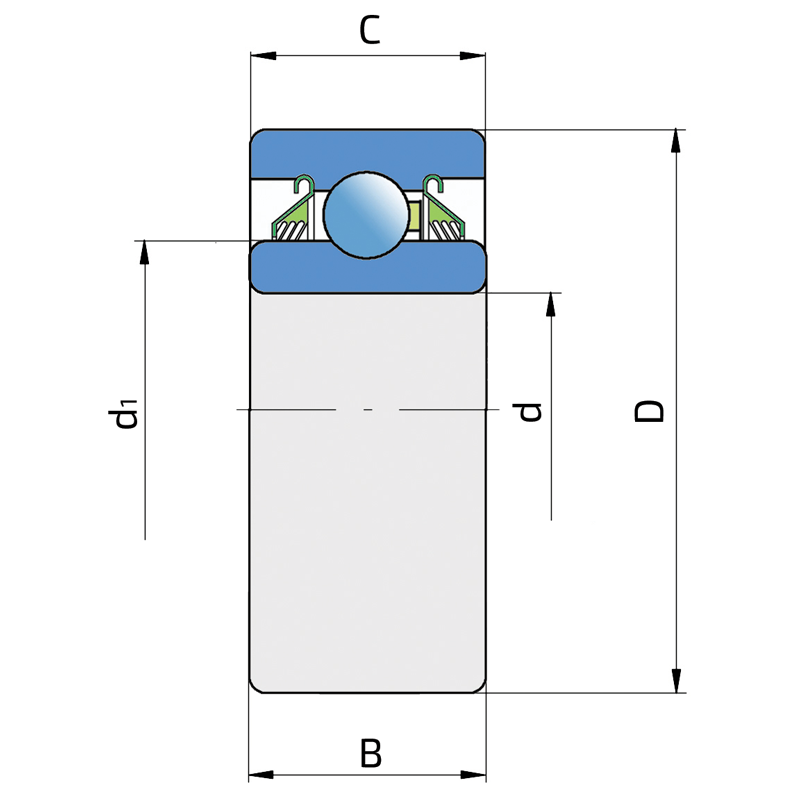

d	Bore diameter	55.58
D	Outside diameter	100
B	Width inner ring	33.34
C	Width outer ring	33.34
d1	Outer diameter inner ring	69.1
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	1.06

Interchange:

OEM	Manufacturer	Comments
7AC11-23/16	NTN
DC211TT2	BCA
W211PP2	TORRINGTON
W211PP2	FAFNIR
W211PP2	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
