W 211PP5 FKL

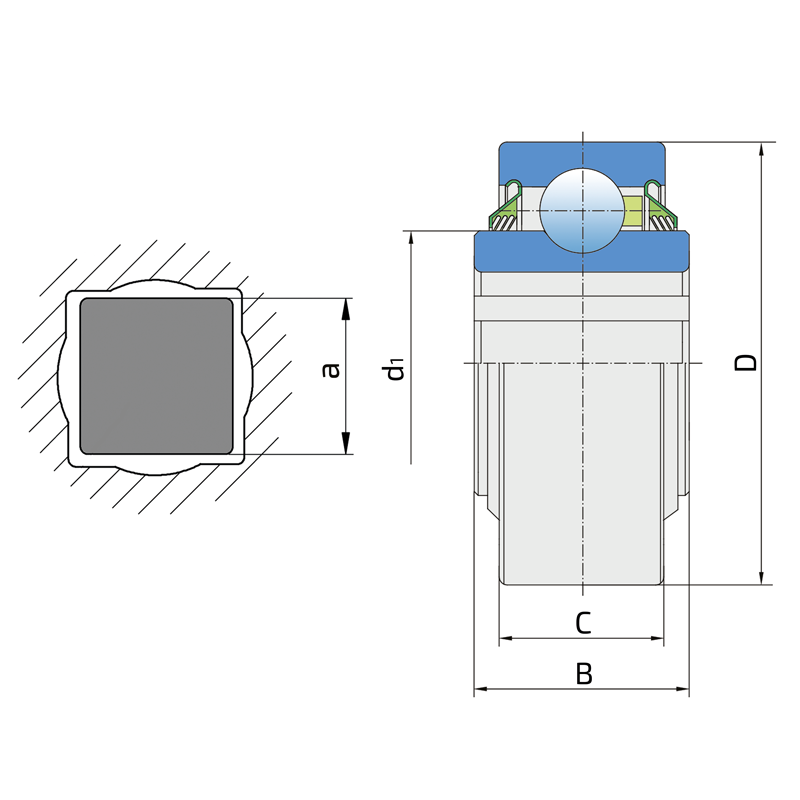

Technical datasheet:

D	Outside diameter	101.6
B	Width inner ring	44.5
C	Width outer ring	36.5
d1	Outer diameter inner ring	69.1
a	Shaft size	38.9
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29
kg	Mass	1.58

Interchange:

OEM	Manufacturer	Comments
6AS11-11/2V1	NTN
W211PP5	INA
W211PP5	FAFNIR

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
