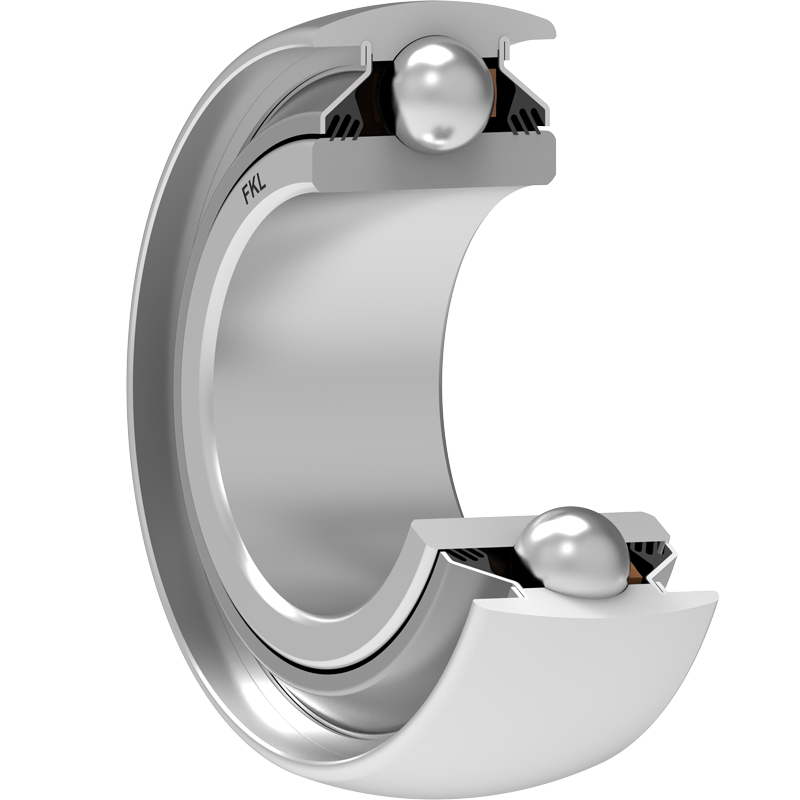

W 211PPB2 FKL

Technical datasheet:

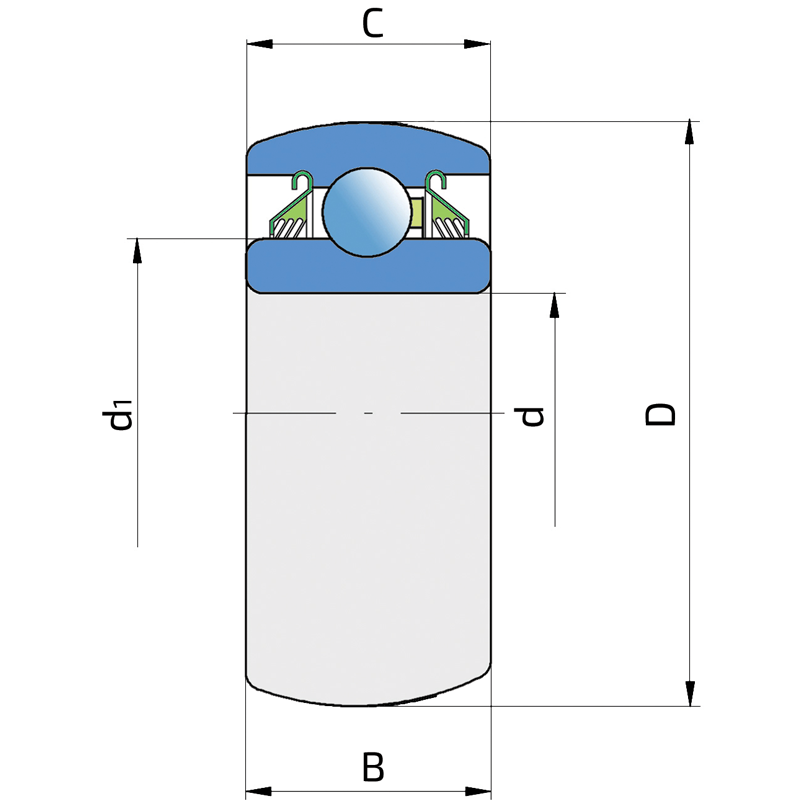

d	Bore diameter	55.58
D	Outside diameter	100
B	Width inner ring	33.34
C	Width outer ring	33.34
d1	Outer diameter inner ring	69.1
kg	Mass	0.97
Cdyn	Dynamic load rating	43.5
Co	Static load rating	29
Pu	Fatigue load limit	1.218

Interchange:

OEM	Manufacturer	Comments
35R3-211E3	LINK BELT
3AC11-23/16	NTN
831960M1	MASSEY FERGUSON
DS211TT2	BCA
W211PPB2	FAFNIR
W211PPB2	INA
W211PPB2	TORRINGTON

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
