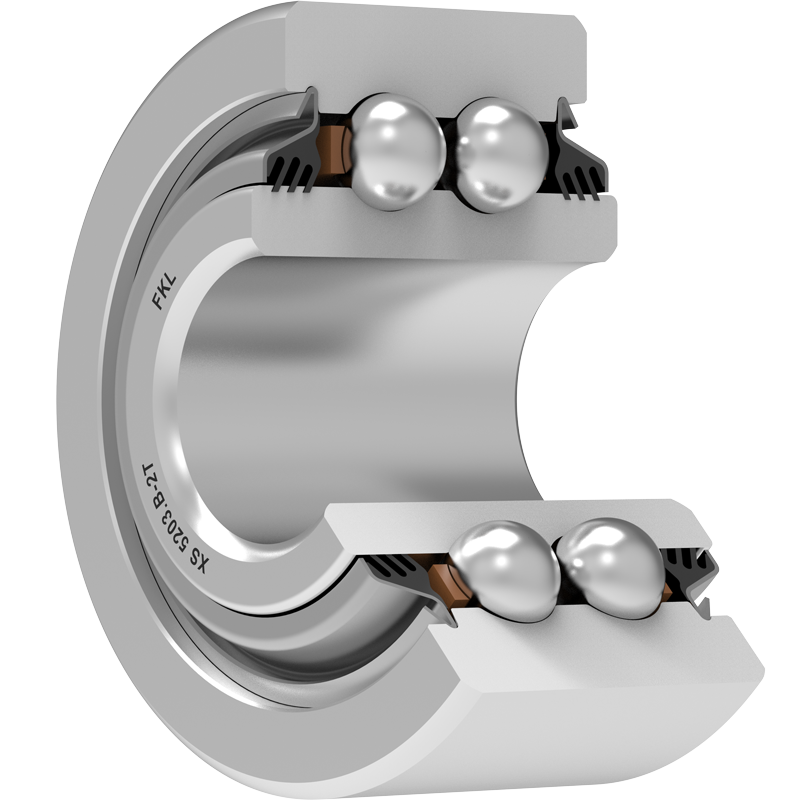

XS 5203.B-2T FKL

Technical datasheet:

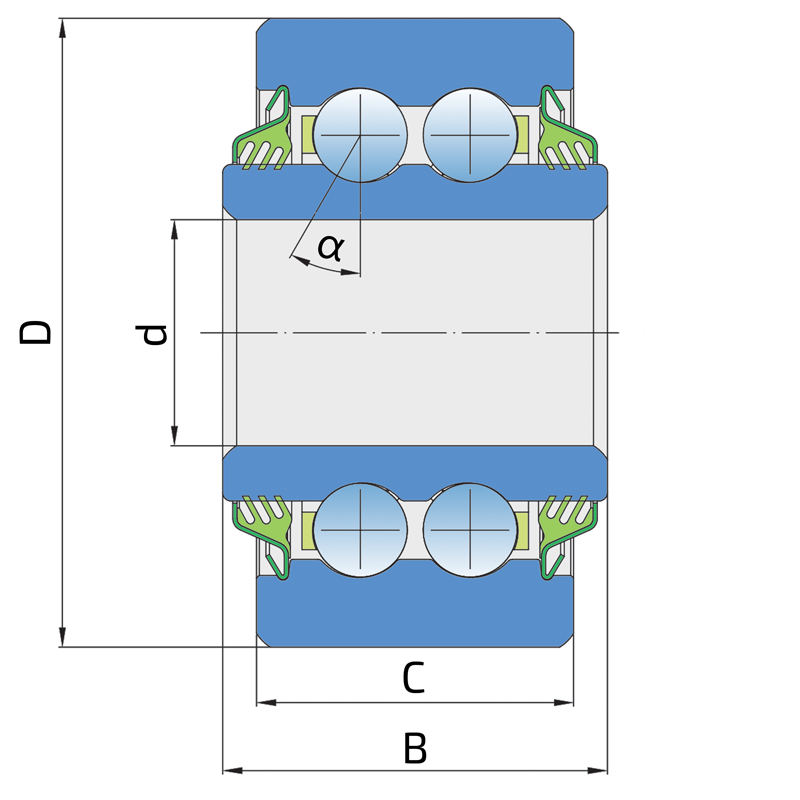

d	Bore diameter	16.26
D	Outside diameter	45.23
B	Width inner ring	27.66
C	Width outer ring	22.8
kg	Mass	0.18
Cdyn	Dynamic load rating	14.21
Co	Static load rating	8.8
Pu	Fatigue load limit	0.3696
α	Contact angle	30

Interchange:

OEM	Manufacturer	Comments
W5204RPP58	PEER

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
