ZGKU 208 2S FKL

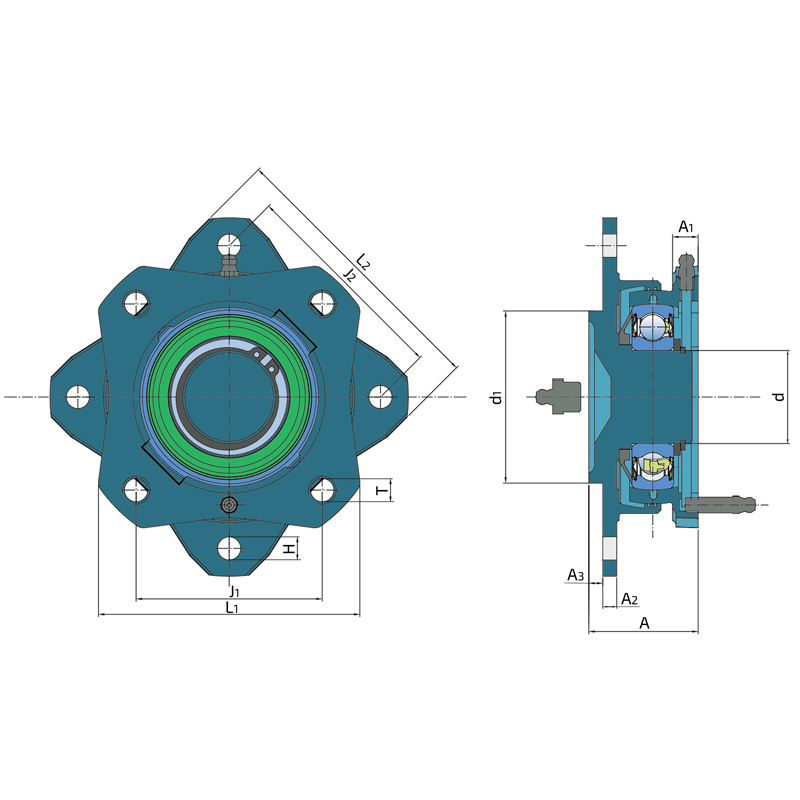

Technical datasheet:

d	Bore diameter	40
d1	Centering diameter	74
J1	Distance between the holes	80
L1	Housing overall width	112
J2	Distance between the holes	92
L2	Housing overall width	120
A	Overall unit width	47
A1	Flange width	11
A2	Flange width	6
A3	Centering diameter height	6
T	Threaded hole size	4xM12x1.25
H	Hole diameter	4x10
kg	Mass	2.3
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.832

Interchange:

OEM	Manufacturer	Comments
M43400467R	GASPARDO

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
