Product number:

ZGKU 309 2S

Brand:

Product name:

bearing

Replacements:

M43400468R GASPARDO M43400468R

Inquiry Subscribe

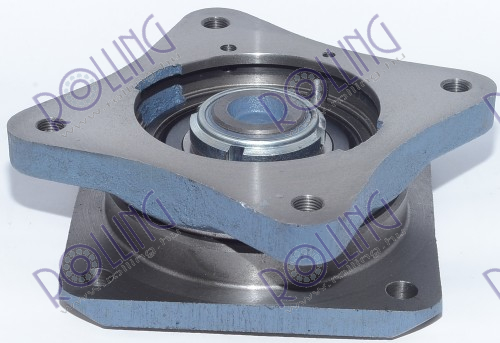

ZGKU 309 2S FKL

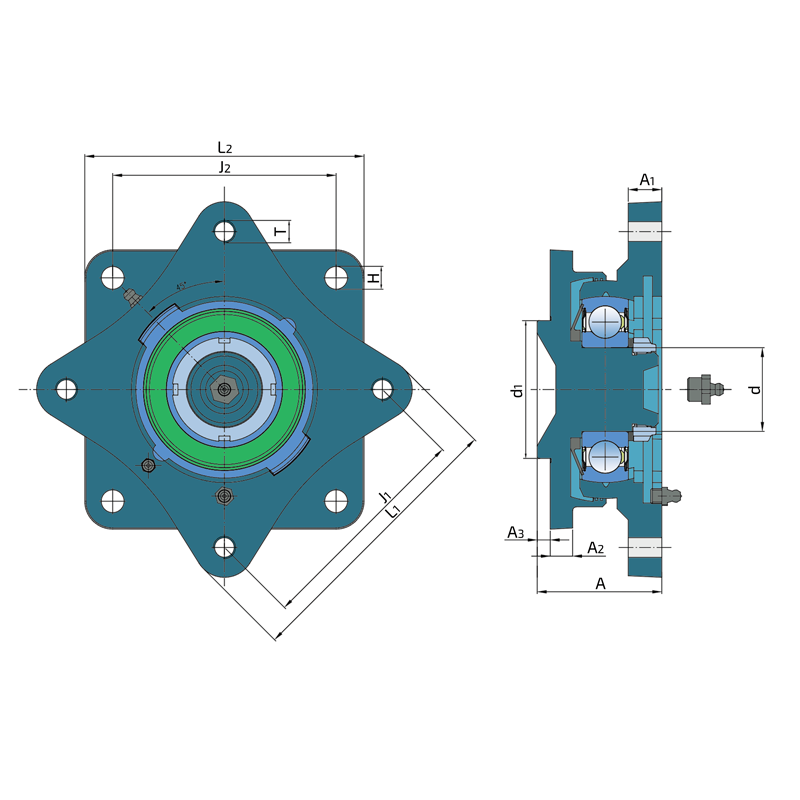

Technical datasheet:

d	Bore diameter	45
d1	Centering diameter	74
L1	Housing overall width	152
J1	Distance between the holes	120
L2	Housing overall width	150
J2	Distance between the holes	120
A	Overall width	66.9
A1	Flange width	18
A2	Flange width	12
A3	Centering diameter height	7
T	Threaded hole size	4xM12x1.25
H	Hole diameter	4x12.3
kg	Mass	5.6
Co	Static load rating	59.6
Cdyn	Dynamic load rating	80.8

Interchange:

OEM	Manufacturer	Comments
M43400468R	GASPARDO
R17015300R	GASPARDO

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
