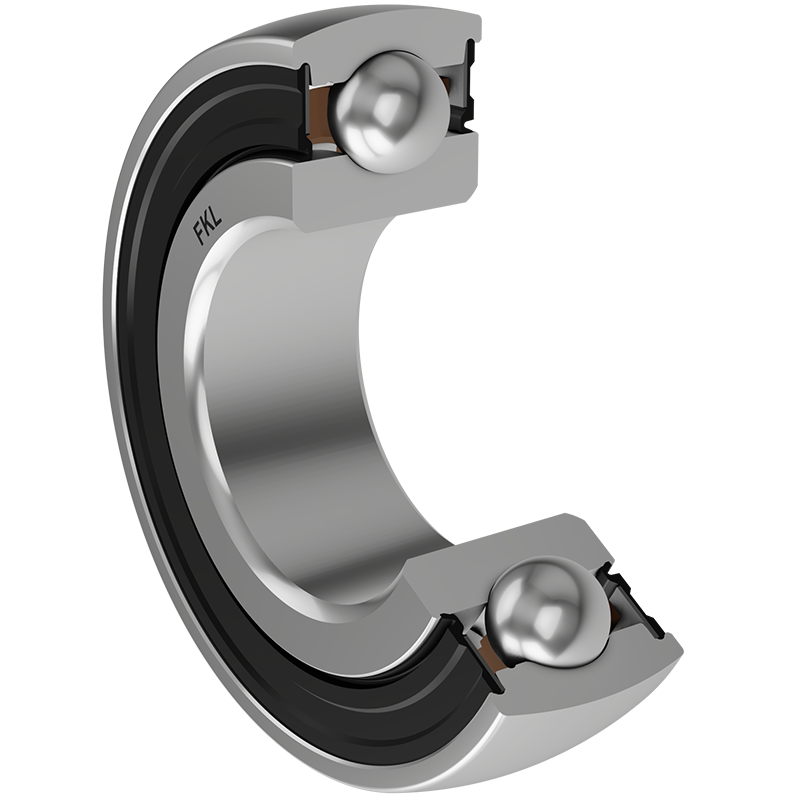

1726206 2RS1 FKL

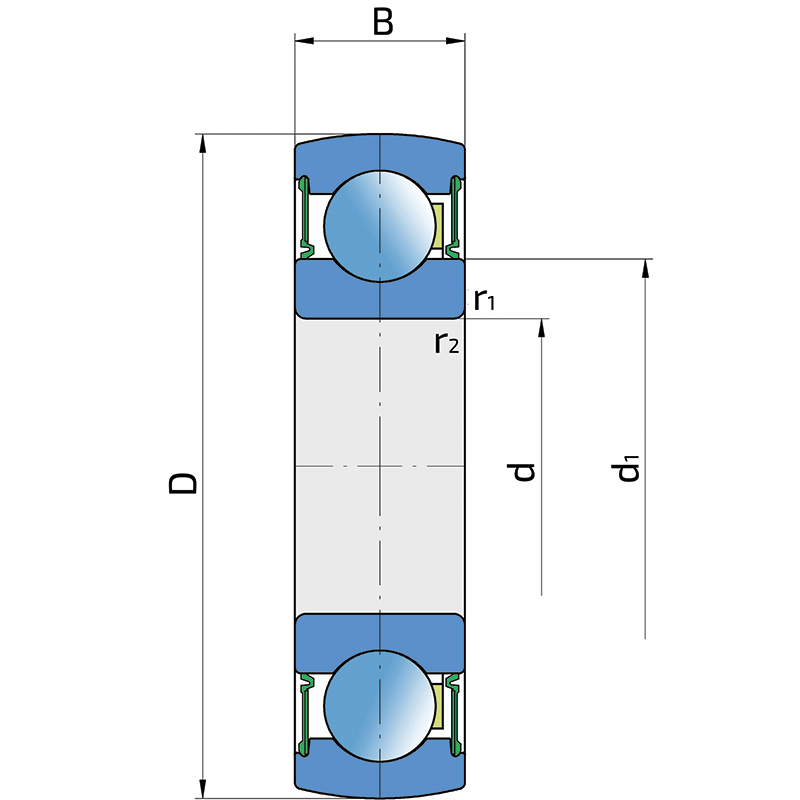

Technical datasheet:

d	Bore diameter	30
D	Outside diameter	62
B	Width inner ring	16
d1	Outer diameter inner ring	39.7
r1,2	Inner ring Chamfer dimension	1
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.48
kg	Mass	0.18

Interchange:

OEM	Manufacturer	Comments
0002111560	CLAAS
00240008	HORSCH
1726206-2RS	RHP
1726206-2RS1	SKF
206NPPB	INA
6206SEE	SNR
76206-2RS	FAG
CS206DDU	NSK
CS206LLU	NTN
JD10386	JOHN DEERE

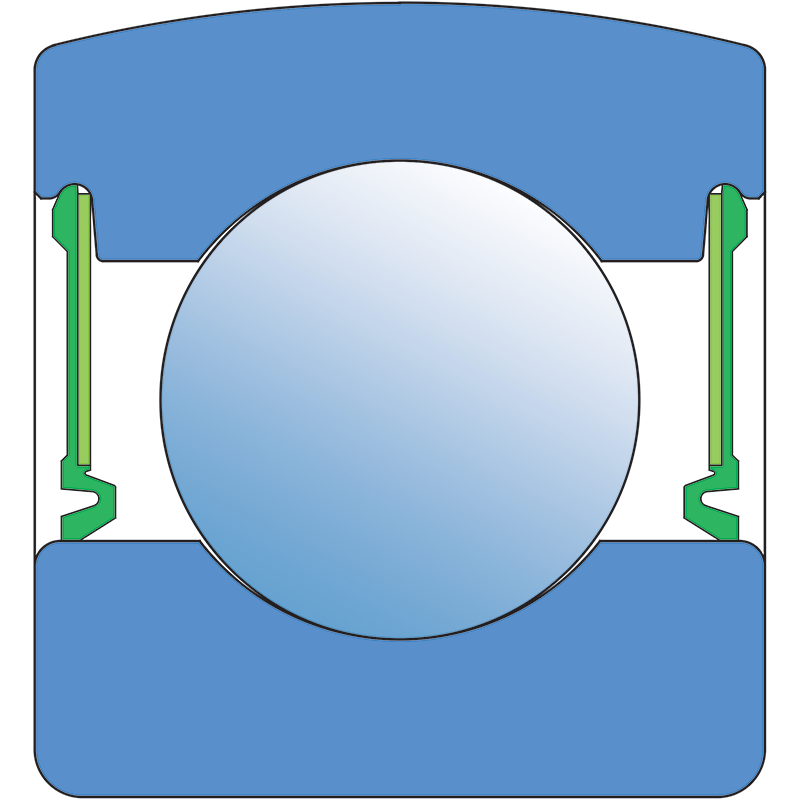

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
