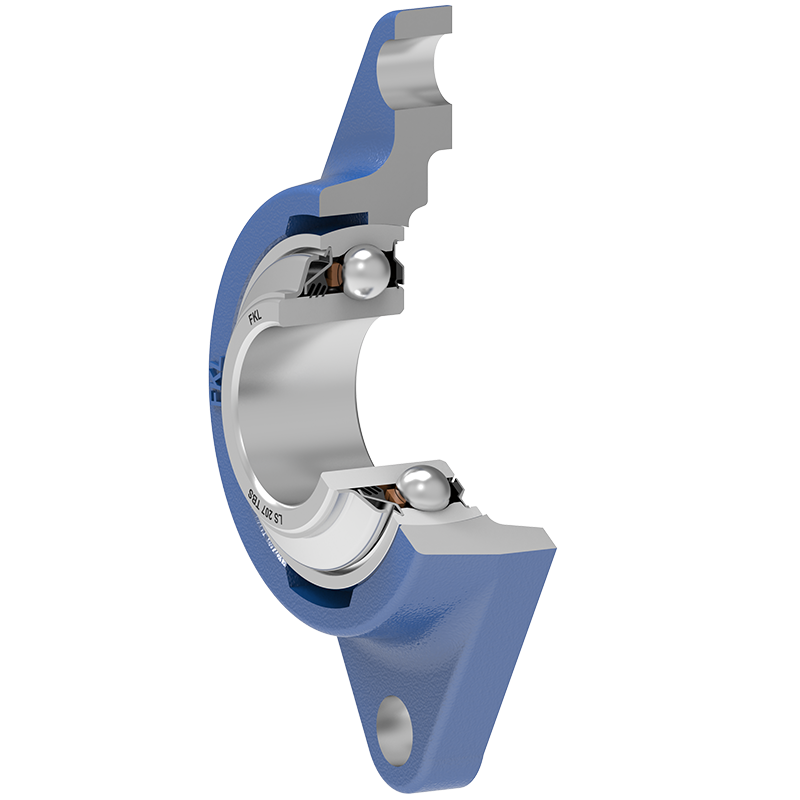

LSNR 207 TBS FKL

Net price:

52.364 €/pcs

Main warehouse:

On stock

4 pcs

Product number:

LSNR 207 TBS

Brand:

FKL

Product name:

csapágyegység

Sizes:

35X72X20/28

Catalog:

Catalog #1: https://shop.rolling.hu/catalog-item/FKL/bearings/869

Replacements:

3199352 LEMKEN PN00030 F-232812.03.RCJT

Inquiry Subscribe

Product details from catalogue

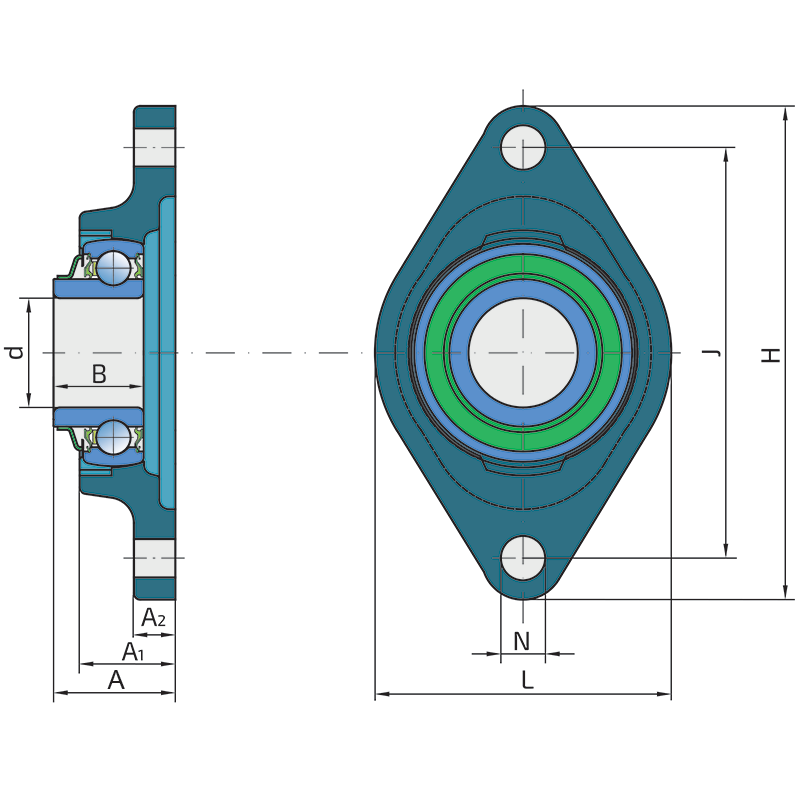

Drawings:

LSNR 207 TBS FKL

Technical datasheet:

d	Bore diameter	35
H	Housing height	155
L	Total length	93
J	Pitch circle diameter	130
A	Overall width	40
A1	Total housing width	31
A2	Housing flange thickness	13
B	Width inner ring	28.3
N	Hole diameter	14
kg	Mass	1.05
Co	Static load rating	15.3
Cdyn	Dynamic load rating	25.5
Pu	Fatigue load limit	1.071

Interchange:

OEM	Manufacturer	Comments
3199352	LEMKEN
F-232812.03.RCJT	INA
PN00030	RBF

S SEAL / T SEAL+METAL FLINGER RING

S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.
